Kingspan Insulated Panels from 40-150mm, Kingspan Double Skin 24mm rooflights.
We supply Quadcore Kingspan RW Insulated Panels in thicknesses from 40mm to 150mm.
ROOF PANELS

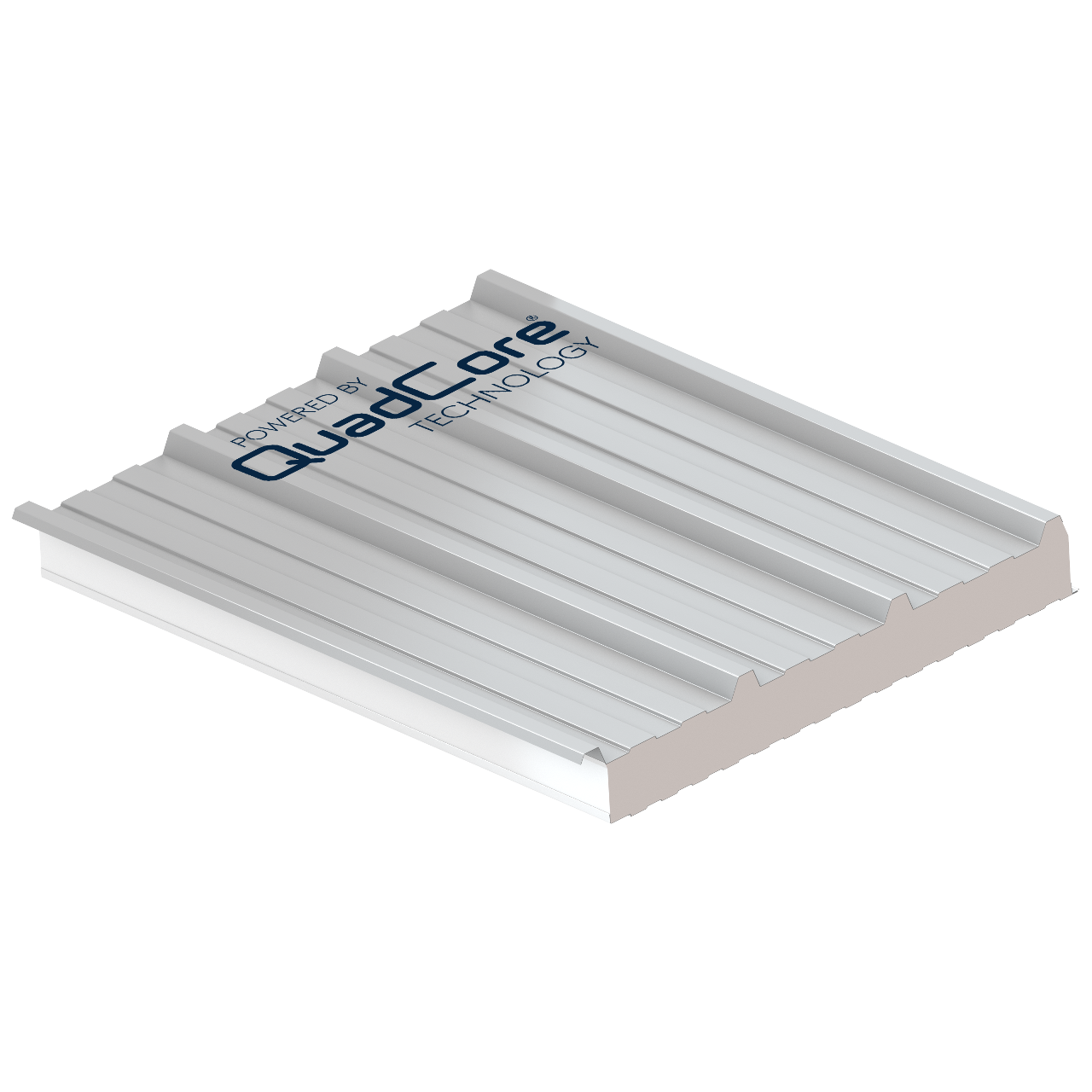

QuadCore KS1000RW Roof Panel
QuadCore KS1000RW Roof Panel is a through-fix profiled insulated roof panel, which can be used for building applications with roof pitches of 4° or more after deflection. The panel is available in a width of 1000 mm. Thanks to the prefabricated nature of the insulated panels, they are quicker to install than traditional roof structures, making the roof instantly wind and water-tight and significantly reducing construction risks.
Product Highlights
QuadCore Technology insulation core
Suitable for pitched roof application of 4° or more after deflection
Standard lengths from 1.8 – 14.5 m. See technical information for non-standard lengths available
Optional factory-applied side lap seals

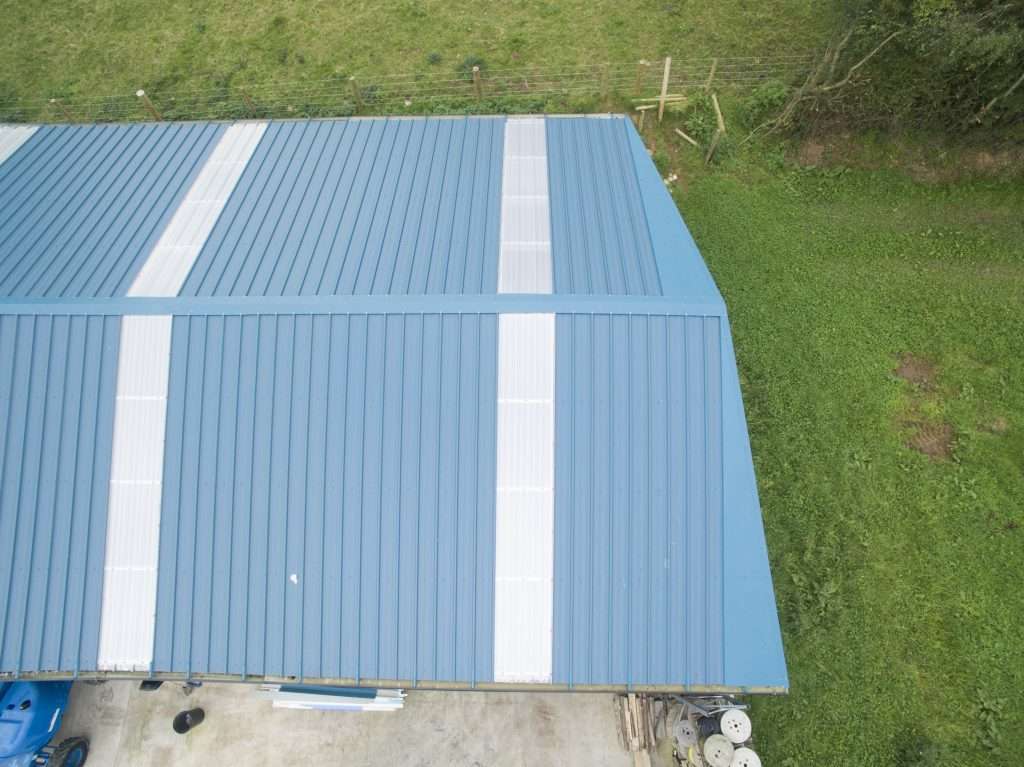

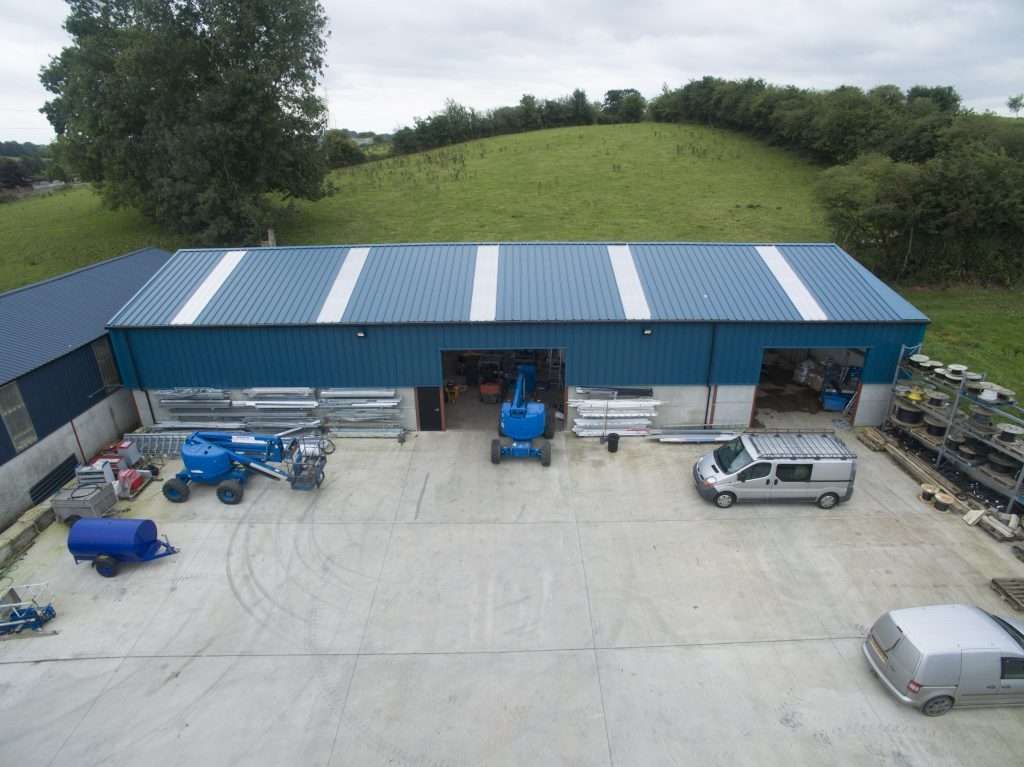

The sheeting is available in various colours and we order the sheeting to the exact size with your exact cut back to reduce waste and installation time on site. The Kingspan rooflights to suit these insulated panels are universally 25mm. They are sold with a spacer to suit the different thicknesses of panels.

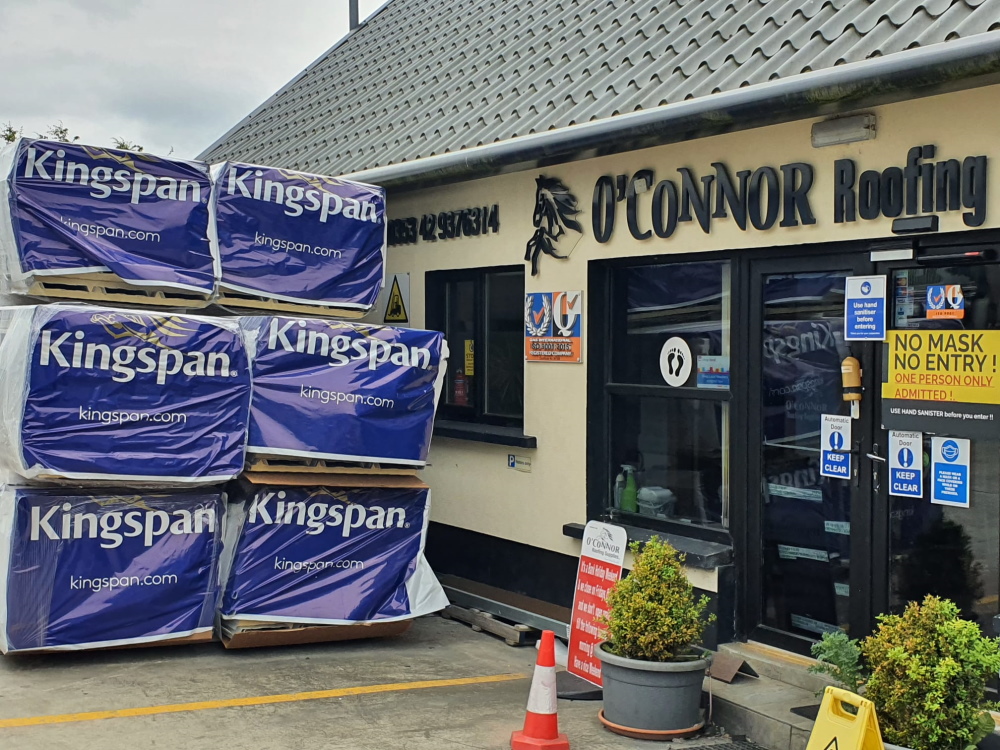

O’Connor Roofing Supplies Ltd have been working closely with Kingspan and supplying their products for over 20 years.
The KS1000 RW is a through-fix trapezoidal profiled insulated roof panel which can be used for building applications with roof pitches of 4° or more after deflection. Panels can be cut to your required length and are available in various colours. Core thicknesses are 40mm / 53mm / 60mm / 73mm / 80mm / 91mm /100mm / 115mm / 120mm / 137mm / 150mm.

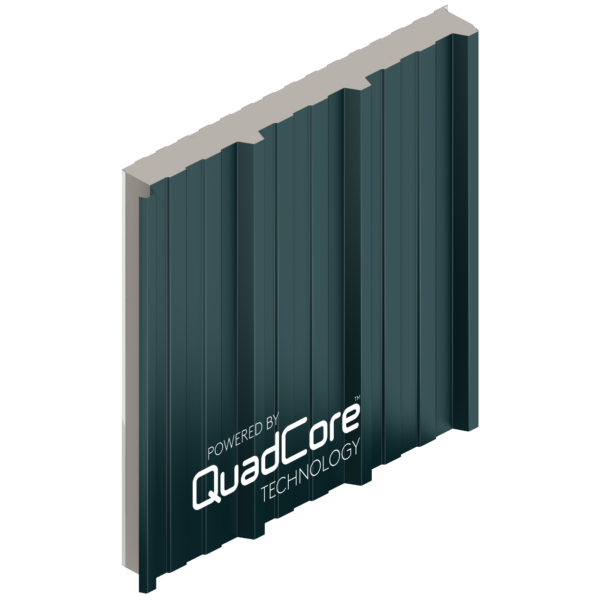

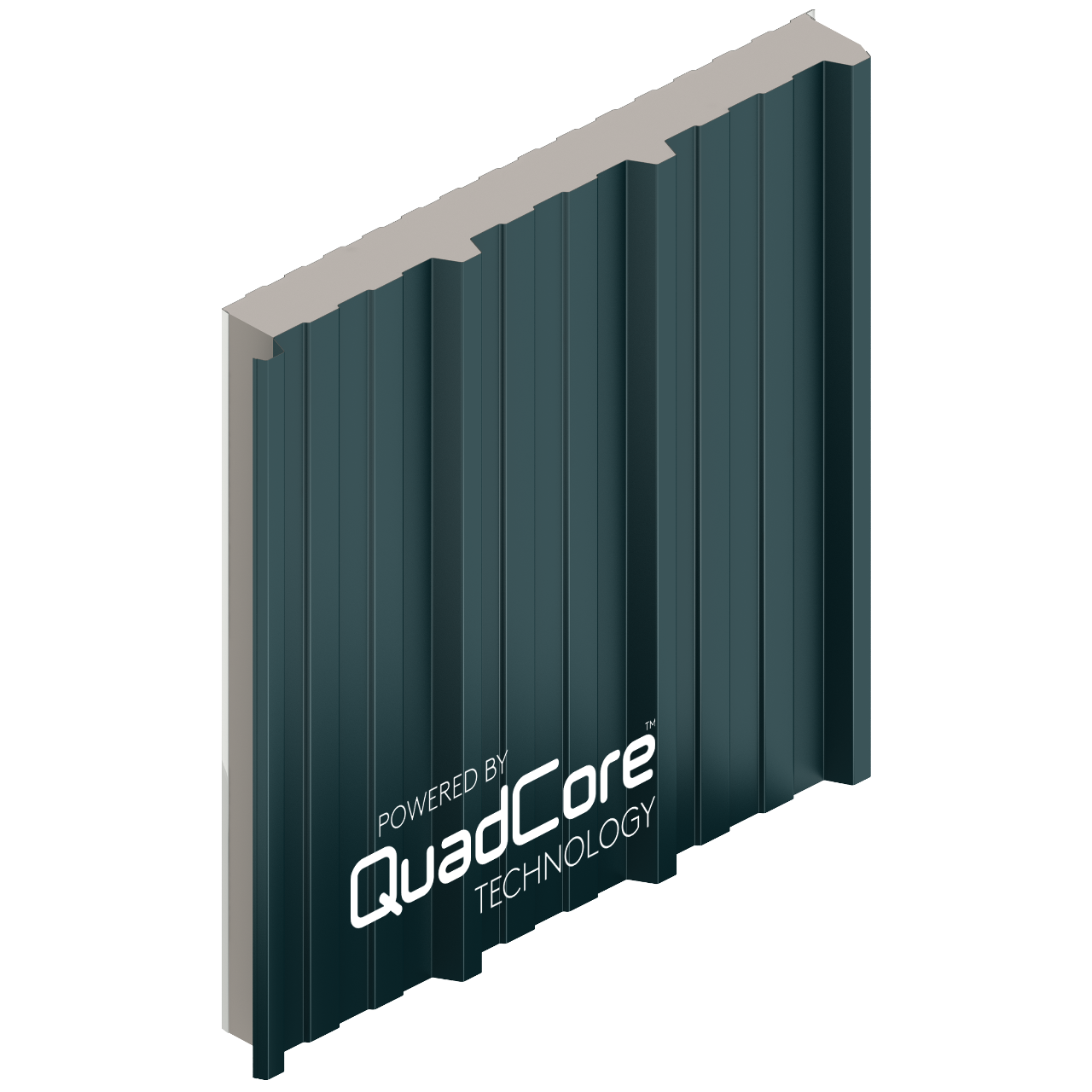

The QuadCore KS1000RW Wall Panel is a through-fix insulated wall panel. Available in 1000mm width and in lengths of up to 29m, allowing for fast and cost-effective installation in both vertical and horizontal applications.
Product Highlights
Through-fix fixing detail
Standard lengths from 1.8 – 14.5m. See technical information for non-standard lengths available
Suitable for vertical or horizontal application
Panels can be mitred externally for horizontally laid panels only
